Product Details

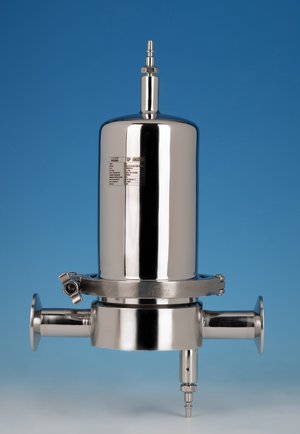

PFGG Mini - Pharmaceutical Liquid and Gas Filter Housing

Brand MF

Media: Liquids Gases -

Micron Ratings:

Filter Type: Metallic

Masterfilter PFGG Mini filter housings are manufactured for filtration of liquids and gases. They are available in 2.5 and 5 inch lengths. The housings are marked with a unique serial number for traceability. The PFGG Mini series is available with a range of pharmaceutical compliant vents and inlet/outlet connections. Our engineering team can design customer specific housing with optional mountings, high temperature and pressure designs.

Features Benefits

Manufactured in accordance with European regulations
Supplied with a wide range of connections
Surface roughness inside Ra < 0.8 μm, electro polished
Surface roughness outside Ra < 0.8 μm
Fully sanitary design

Markets

Pharmaceuticals and Biologicals

Technical Specification

Technical data
Model: PFGG Mini
Number of cartridges: 1
Material: 316L
Housing sealing material: Silicone
Length cartridge: 2.5" and 5"
Cartridge connection: Mini bayonet STT, Junior style (SLV)
In-/outlet diameter: DN 20 and DN 25
Pipe class: DIN 11866-C (ASME BPE)
Design pressure: 10 bar
Design temperature: 150 °C
