LCMK Lenticular Modules - High purity cellulose with activated carbon powder

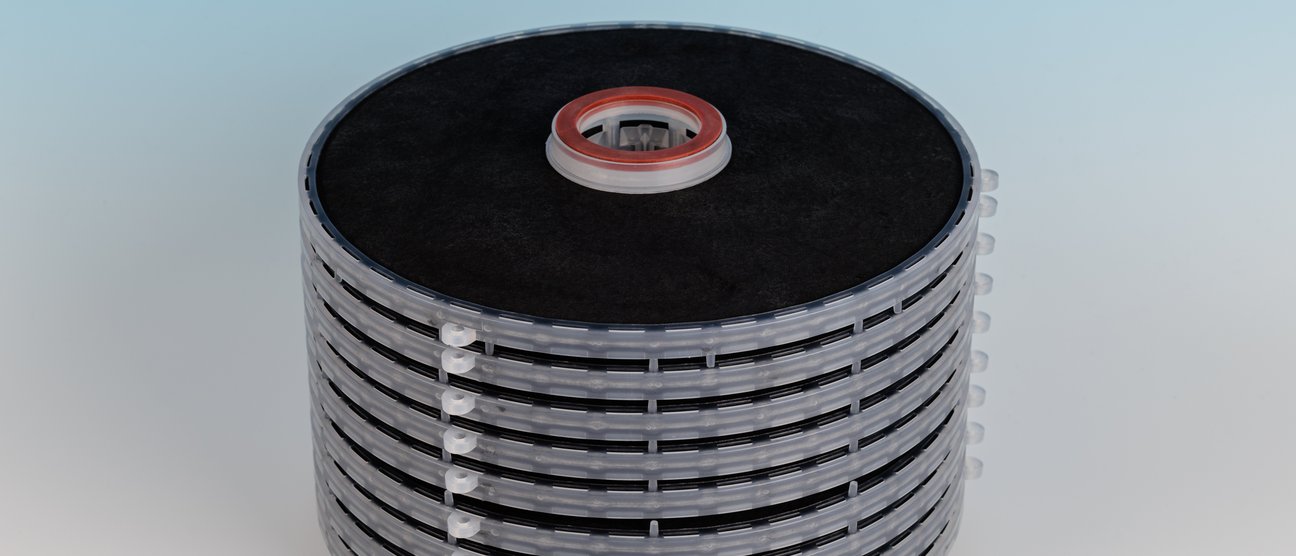

The Masterfilter LCMK lenticular filter modules are made of high-purity cross-weaved lignocellulose and activated carbon powder. The internal porous three-dimensional structure with large internal surface area delivers excellent filtration performance and high dirt holding capacity for depth filtration applications.
The activated carbon powder treated with phosphoric acid or water vapor carries ultra-high specific surface area and is very effective in decolorization and the removal of other contaminants. The cardboard is made of high-purity bleached cellulose, which greatly reduces the extractable metal ions and endotoxins content, making the LCMK series more suitable for use in biopharmaceutical and other high-purity applications. Thanks to its internal cellulose three-dimensional structure and high activated carbon content, the filter has ultra-high dirt holding capacity and decolorization ability.
Features
- Excellent retention ability
- Excellent operational performance
- Longer lifetime
- Available diameter: 12 and 16 inches
- Available number of discs: 7 to 16
Typical Applications
- Decolorization of API
- Endotoxin removal
- Filtration of blood products
- Clarification of biochemical products
Materials of Construction
- Filter media: Cellulose with activated carbon powder and ionic wet-strength resin, positive charged
- Core / cage: Polypropylene
- O-rings: Silicone, EPDM, Viton, PTFE
Operating Parameters
- Max. Temperature: 80 °C
- Max. Differential Pressure: 2.4 bar at 80 °C
- Filtration Area 12” diameter: 0.11 m² per disc
- Filtration Area 16” diameter: 0.23 m² per disc
- Flushing Volume before use: 50 l/m²
- Flow rate: 200 to 400 l/min/m²
Biological Standards
- Bacterial Endotoxin: Aqueous extraction of autoclaved filter contains < 0.25 EU/mL as determined by Limulus Amebocyte Lysate (LAL), USP <85>
- Meet the criteria of the USP<88> Biological Reactivity Test for Class VI-121°C plastics
