Product Details

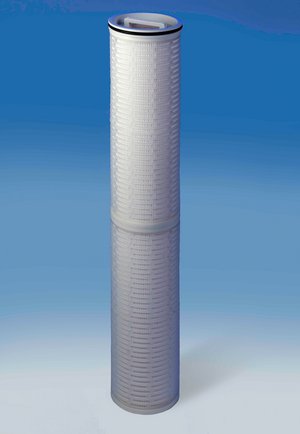

HCF - High Flow Pleated PP or Glas Fiber Cartridge

Brand PreFil

Media: Liquids

Micron Ratings: 0.3 to 40 µm

Filter Type: Pleated Media

Masterfilter HCF high flow cartridges are available in a wide range of pore sizes and provide reliable high performance in many applications. It combines high dirt holding capacity with long service life and high flow rates. The filter utilizes multi-layer filter medium, with graded pore size from coarse (upstream) to fine (downstream), which offers a higher dirt capacity and make it an economical, high accuracy filter cartridge with absolute removal efficiency.

Features Benefits

Coreless construction to minimize waste disposal
Pleated large surface provides high flow rate and long service life
Absolute removal ratings from 0.3 to 40 microns (PP), and 0.8 to 25 microns (GF)
Maximum operating differential pressure (3.8 bar)
Different filter media (PP, GF) offers compatibility with most chemicals, solvents caustic and acids
Pleated surface provides excellent flow rates and low pressure drop
Wrapped version (without outer cage) available

Markets

Food and Beverage
Water
Chemicals

Technical Specification

Materials of construction
Membrane: Multi-layer Polypropylene depth structure (PP); Resin Bonded Glass Fiber & Polyaramid support (GF)
Support layers: Polypropylene
Outer core: Polypropylene
End caps: Glass Filled PP
O-Rings: EPDM, Silicone, Viton, EPDM U-cap

Operating parameters
Max. differential pressure: 3.8 bar at 21 °C, 1.5 bar at 80 °C
Max. operating temperature: 80 °C (PP), 130°C (GF)
Filtration area:
- 20” (508 mm): 15 m³/h (max. 40 m³/h)
- 40” (1016 mm): 30 m³/h (max. 80 m³/h)
- 60” (1524 mm): 45 m³/h (max. 120 m³/h)
Flow rates with multi cartridges: uo to 400 m³/h
